LumenPnP Feeders
Precise and Reliable Component Feeding
For Your LumenPnP
8mm Feeder (5 Pack)
$495.00
Uses one slot on the LumenPnP
16mm Feeder (5 Pack)
$495.00
Uses two slots on the LumenPnP
8mm Feeder (5 Pack)
$495.00
Uses one slot on the LumenPnP
16mm Feeder (5 Pack)
$495.00
Uses two slots on the LumenPnP
| 5 Pack Quantity | Price Per Feeder | Price Per 5 Pack |
|---|---|---|
| 1-2 | $95 | $475 |
| 3-6 | $92 | $460 |
| 7+ | $89 | $445 |
Price breaks reflected during checkout
Orders placed now ship within 4 weeks
Currently shipping v1.4.0

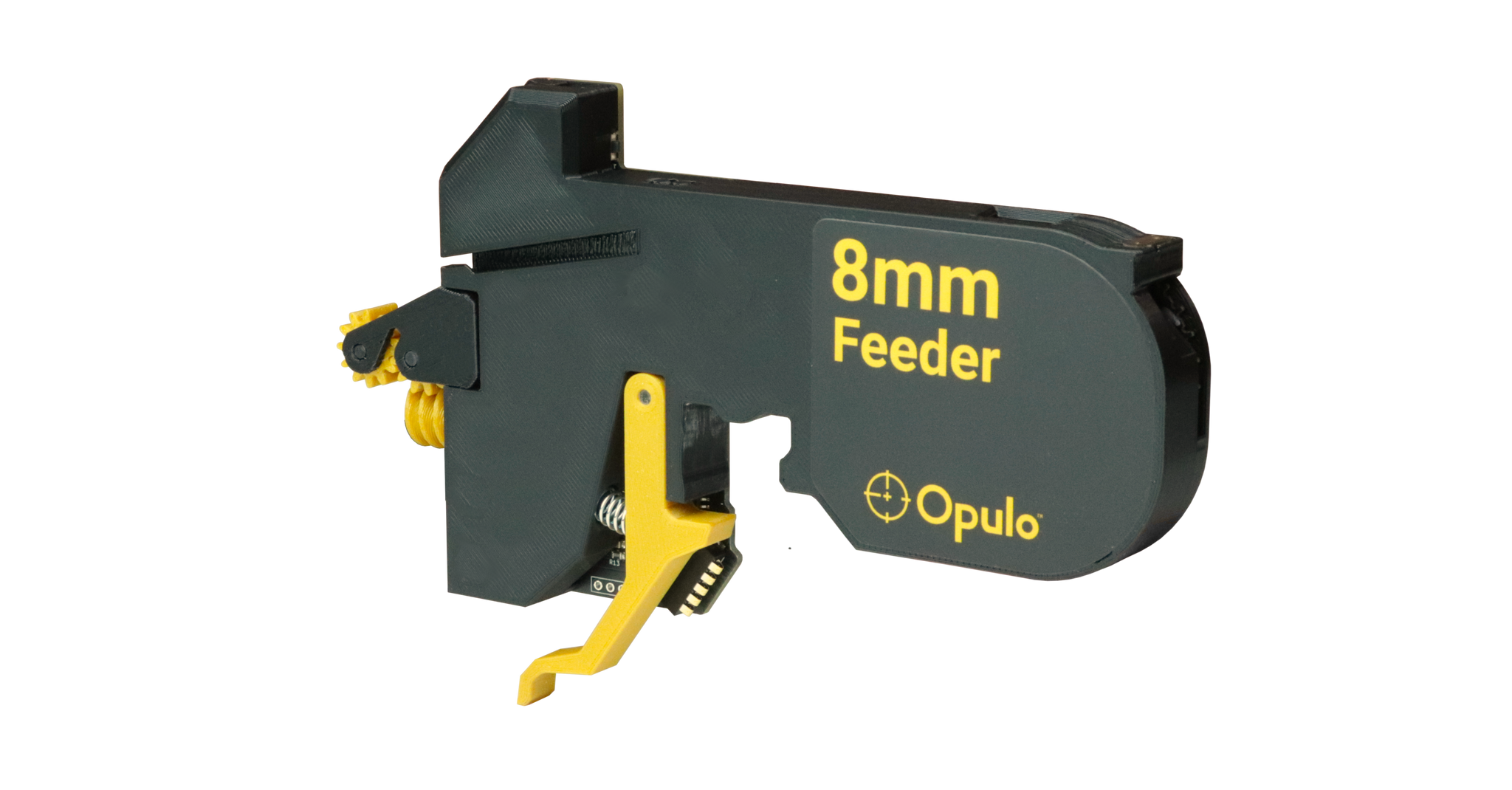

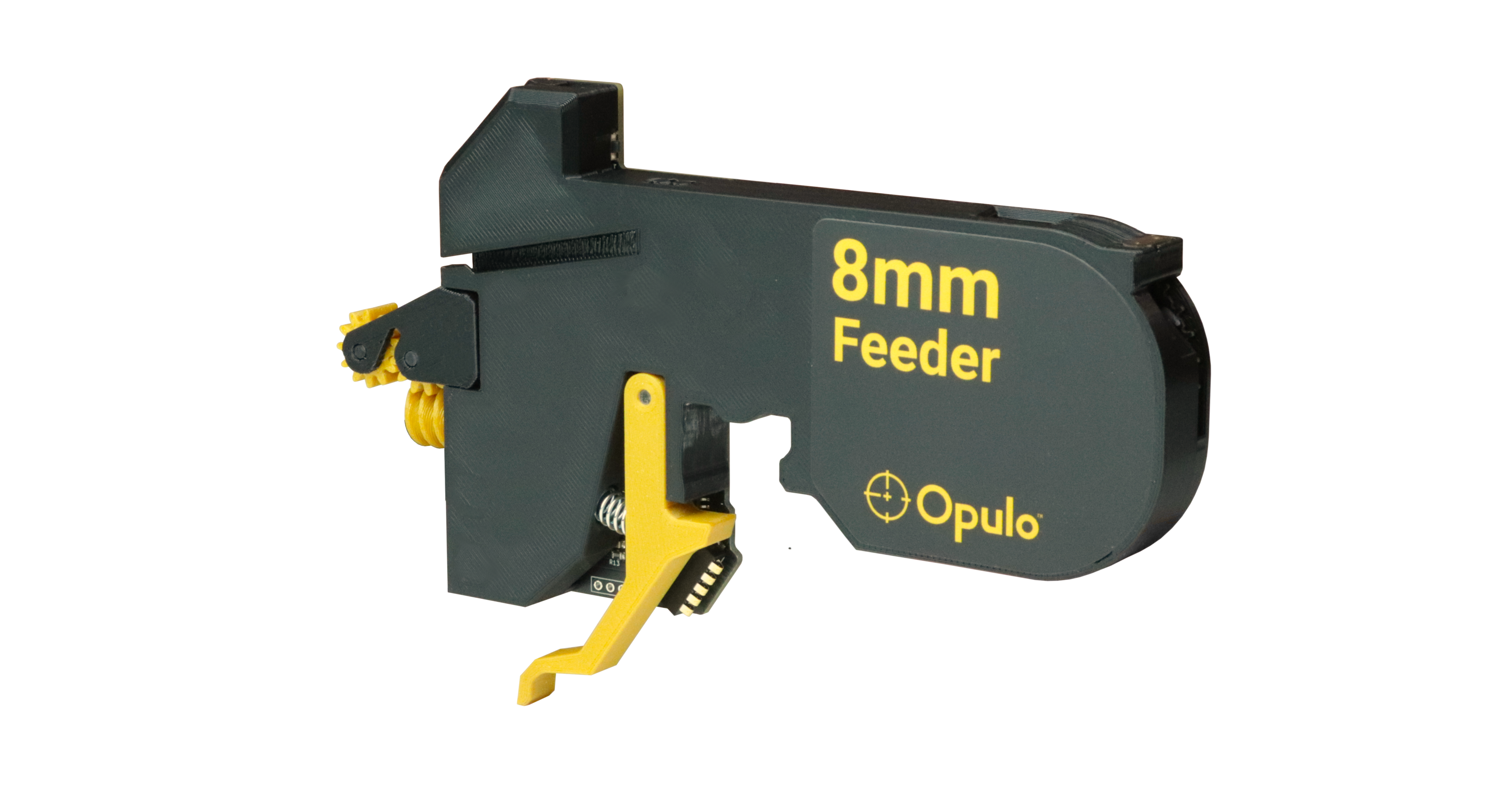

8mm Feeder (5 Pack)
- Supports 8mm wide tape
- Conforms to the EIA-481-F Taping Standard
- Supports down to 0402 components
- Uses 1 / 50 Slots on the LumenPnP

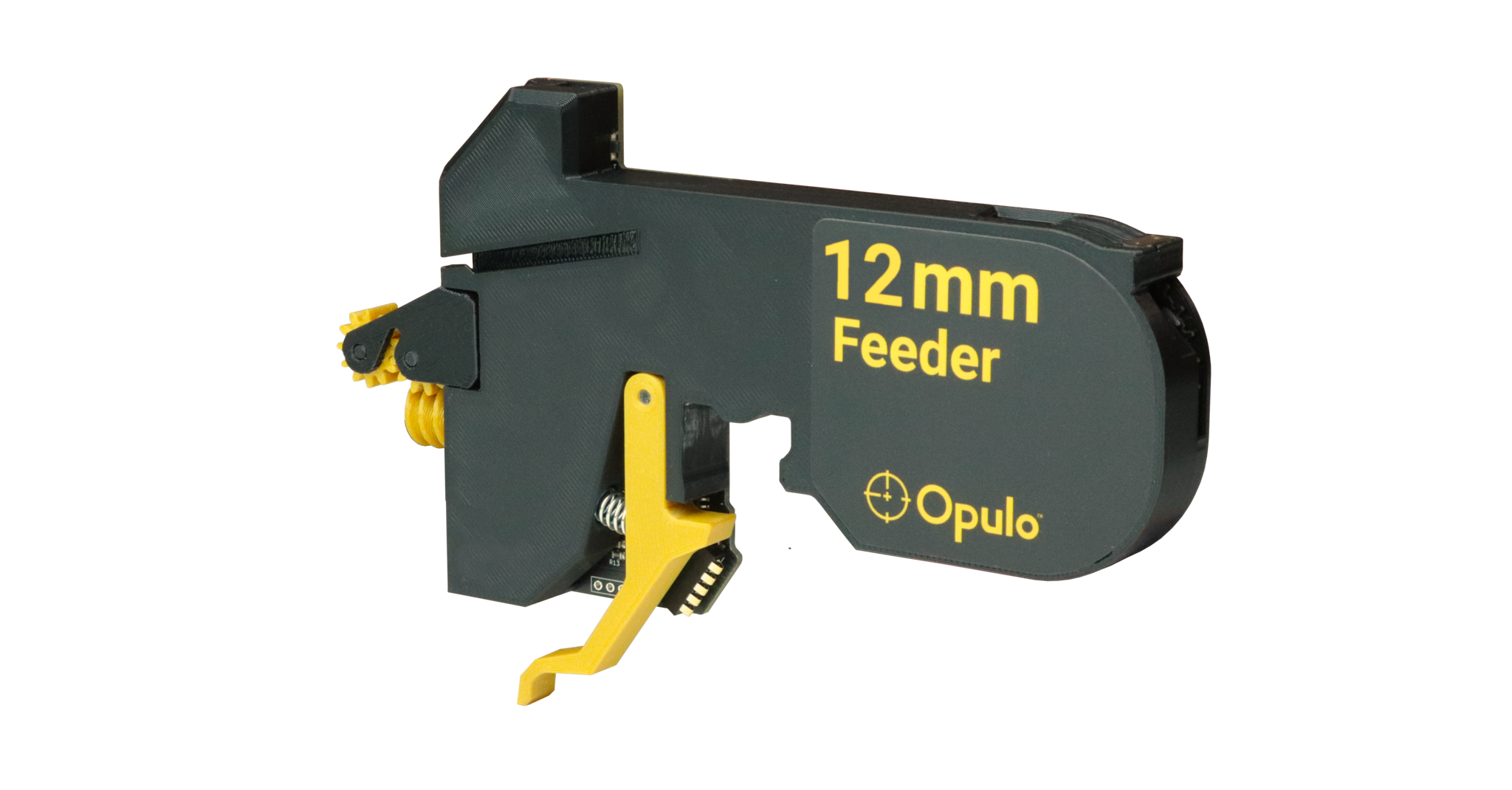

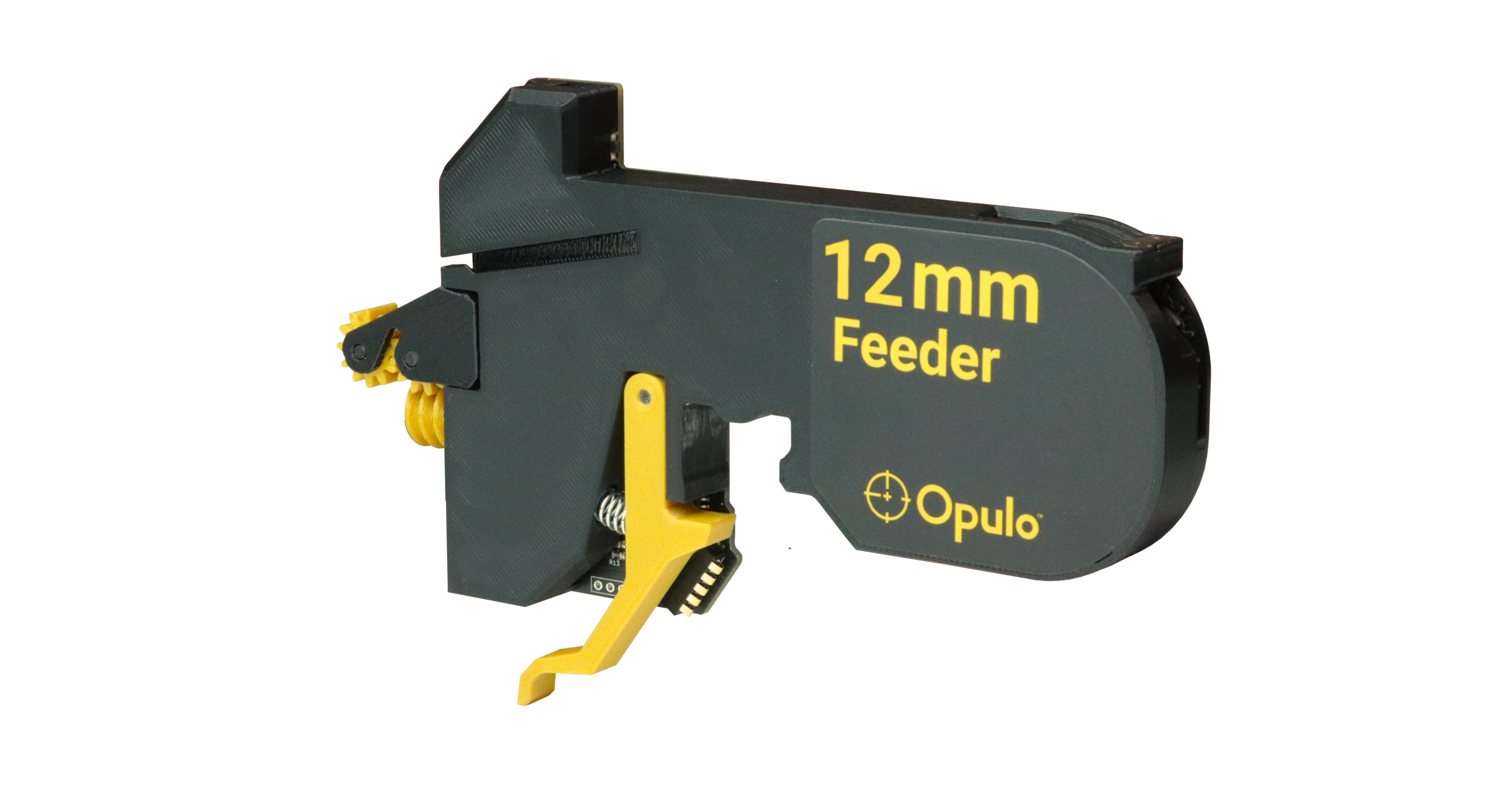

12mm Feeder (5 Pack)
- Supports 12mm wide tape
- Conforms to the EIA-481-F Taping Standard
- Supports down to 0402 components
- Uses 1 / 50 Slots on the LumenPnP

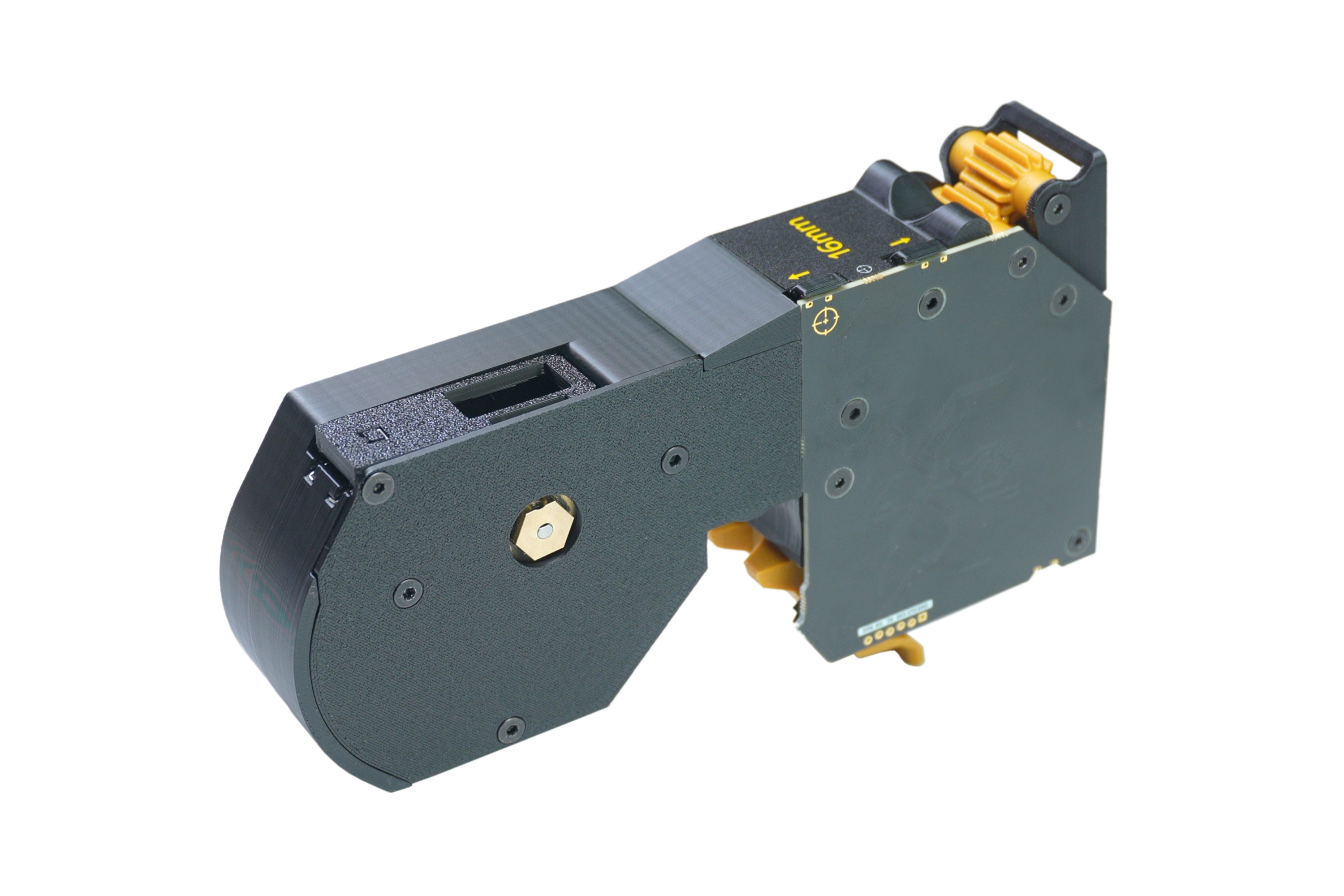

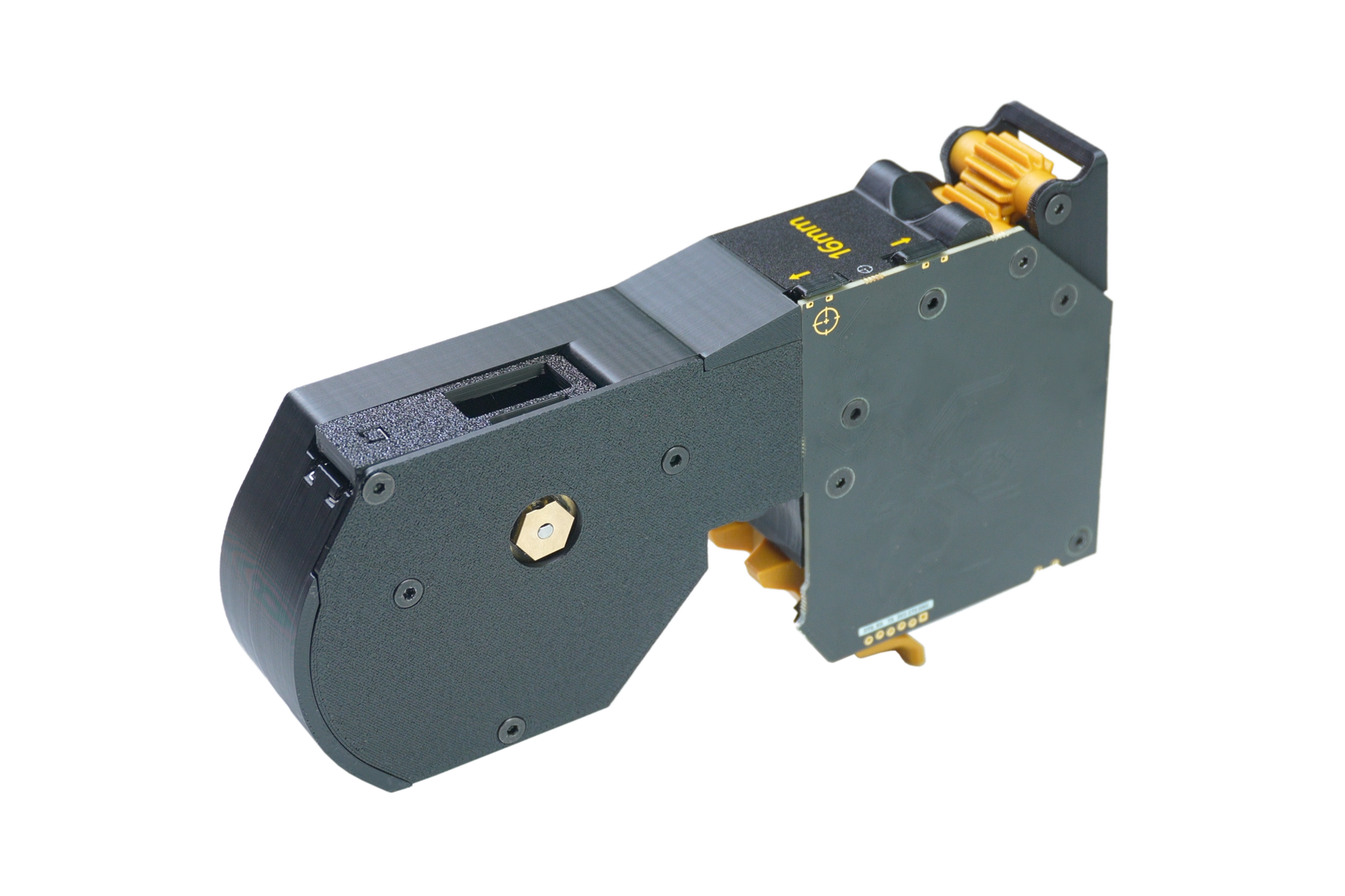

16mm Feeder (5 Pack)
- Supports 12mm wide tape
- Conforms to the EIA-481-F Taping Standard
- Supports down to 0402 components
- Uses 2 / 50 Slots on the LumenPnP

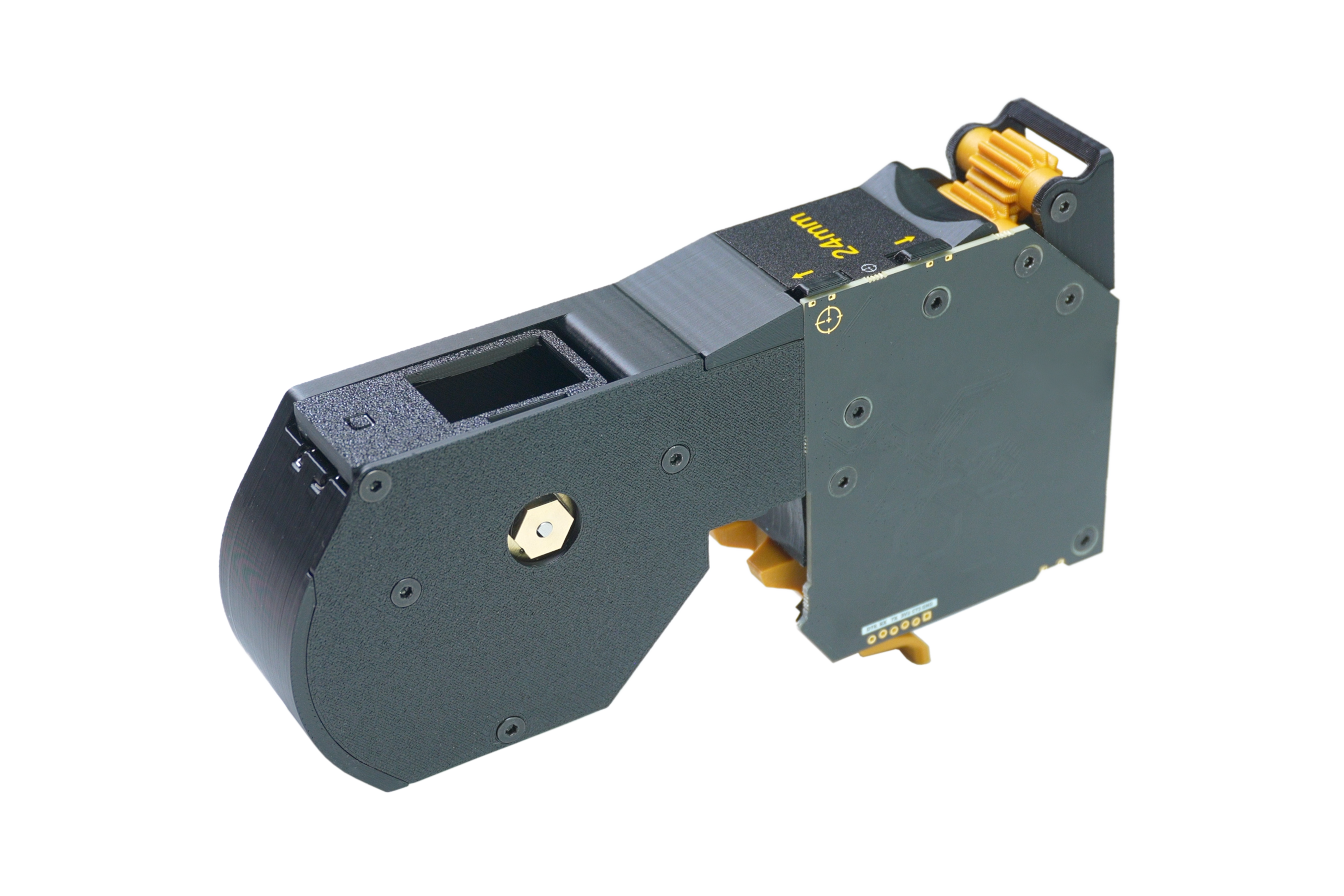

24mm Feeder (5 Pack)
- Supports 12mm wide tape
- Conforms to the EIA-481-F Taping Standard
- Supports down to 0402 components
- Uses 2 / 50 Slots on the LumenPnP
Auto-Detect feeders using OpenPnP
Fully automate your SMT assembly
Straightforward guided setup on our docs page
Lifetime Tested to hundreds of thousands of feeds
Supports down to 0402
Fully Open Source and constantly improving
Precise
With a high-resolution encoder and high ratio gearbox, the feeders are capable of feeding down to 0402 components consistently and reliably.
Watch The Video
Easy to Use
With a custom feeder type in OpenPnP, just click the "search" button and all your feeders auto-populate. They even remember what parts they have loaded, making job setup even easier.
Check Out The Docs PageExpandable
Up to 50 feeders can fit on a LumenPnP at once. When other tape width variants of the feeder become available, they'll be fully compatible with your machine's setup.
Feeders are also compatible with any version LumenPnP, so you're set to automate tape feeding regardless of your setup.
Designed with Wide Tape in Mind
With a spring-loaded pick window, redesigned peel system, and larger driver motor, 16mm and 24mm feeders have been designed from the ground up for wide tape and heavier components.
