LumenPnP

€1.874,95

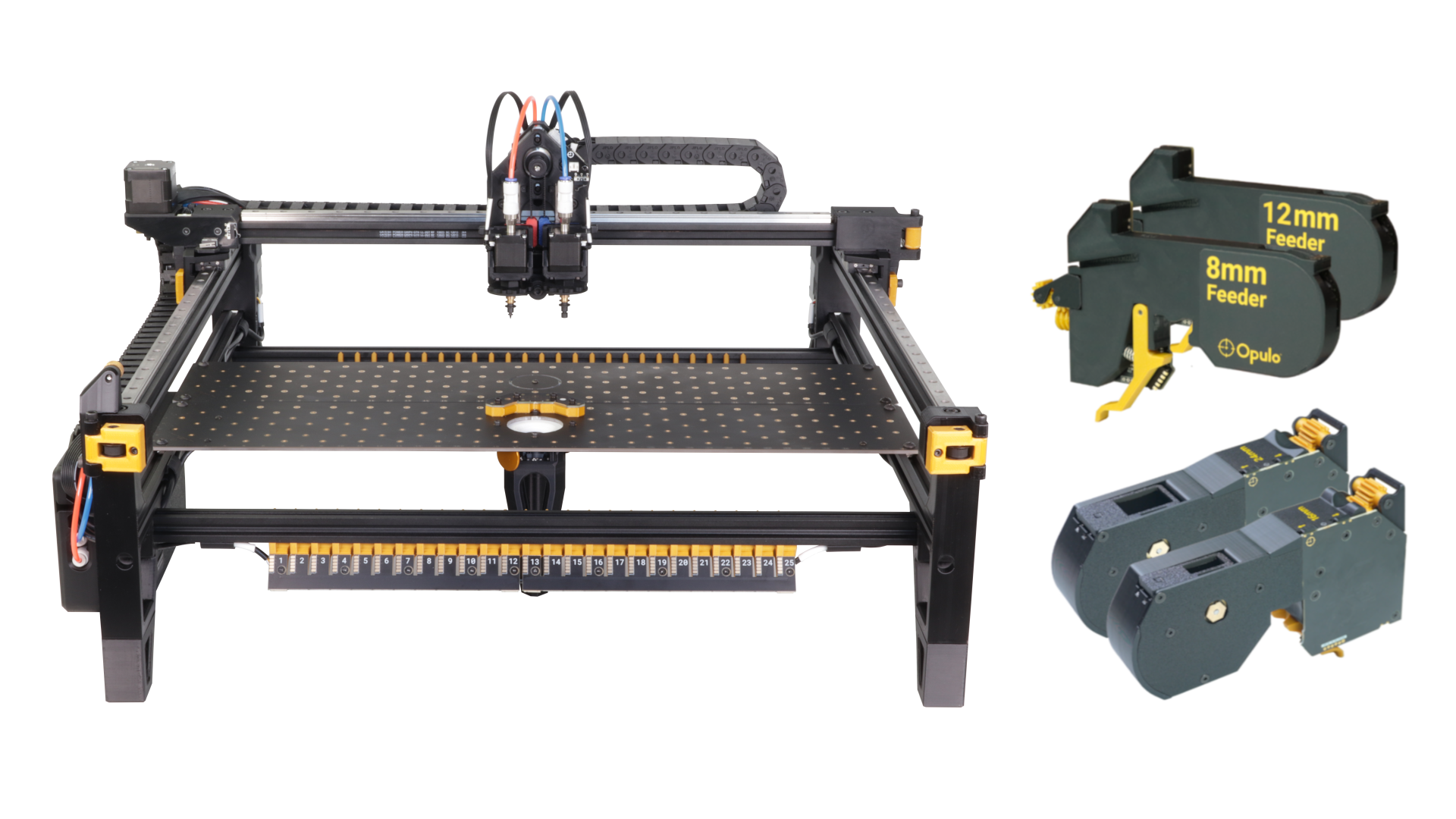

The LumenPnP is an open source, desktop pick and place machine. Whether you're hand assembling a few dozen prototypes, or manufacturing thousands of units a year, the LumenPnP can automate your SMT assembly in-house and let you get back to doing what you do best.

    Orders placed now have an estimated 4 week lead time.

    Current shipping version: v3.2.0

    Next Generation Capabilities

    Easy Setup with Pre-Built Machine Subassemblies

    Closed-Loop Vision System with Integrated Lighting

    Fully Open Source and Constantly Improving

    Maximum PCB Size: 225mm x 400mm

    Minimum Component Size: 0402

    Hackable for Emerging Applications

    Faster Than Ever Before

    The LumenPnP now features premium linear motion hardware. This greatly increases the machine's maximum speed, increasing your line's throughput.

    These upgrades include:

    • Stainless Steel MGN12H Linear Rails from LDO Motors
    • GT®2 Pulleys from LDO Motors
    • Original Gates PowerGrip™ GT®2 Timing Belt

    Getting Started Made Easy

    We walk you through every part of setup, including placing your first board with comprehensive onboarding documentation, video tutorials, and the included Getting Started Kit.

    This kit includes a Functional Test Placement (FTP) PCB - a calibration tool that helps you learn the ropes of running a job and getting your machine ready for work. Plus, the Opulo Support Team is always here to help if you ever need a hand.

    Learn More

    Get Right To Work

    Every LumenPnP comes with a fully kitted out tool bag. We provide everything you need to not only get your machine assembled and configured, but also to dive straight into production and keep your machine running smoothly.

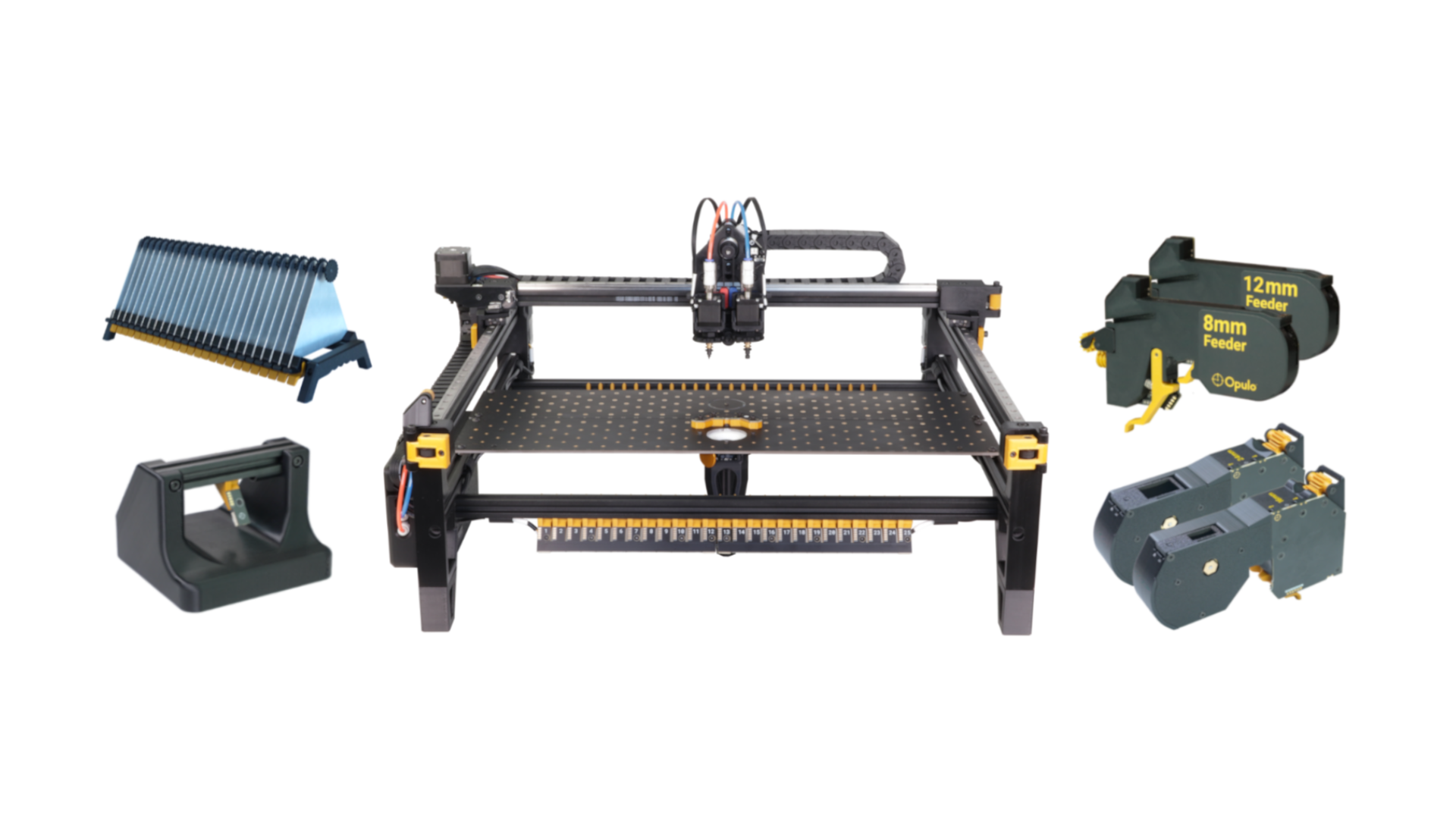

    Feeder Support Built-In

    The LumenPnP is designed with feeders in mind. It comes pre-wired and ready to use up to 50 feeders at once.

    8mm and 12mm feeders are available now, fully automating the vast majority of the parts in your BOM.

    Feeder Product Page
    Screenshot 2023-10-15 at 1.06.41 PM.png__PID:f090e7a8-8267-4eab-a814-9049319c7027

    Configure Your Machine

    Use our configuration tool to determine the optimal feeder setup for your LumenPnP job.

    Config Tool

    LumenPnP In Action

    Machine Overview

    In The Box

    • LumenPnP Pick and Place Machine
    • Two Nozzle configuration for dual pick heads
    • Two Staging Plates for larger working area
    • Two cameras for vision calibration
    • 24v DC power supply
    • USA-style power cord included
    • Supports 110v 220v AC Input
    • USB Type-A to USB-B cable
    • Packaged safely with recycled PE foam
    • Fully tested & assembled electrical system
    • One set of six CP40 nozzle tips
    • Ships with v3.2.0+ hardware
    • Getting Started Kit
    • FTP calibration PCB
    • Roll of double-sided tape
    • Starting supply of test components
    • 8mm Strip Feeder
    • Universal PCB fixture system
    • Complete Tool Kit
    • 45° tweezers
    • Metric allen wrench set
    • Hobby knife
    • ESD safety bracelet
    • Flush cutters
    • Silicone PTFE grease
    • Tool organizer bag
    • Alignment jig

    Technical Specifications

    Maximum PCB Size225mm x 400mm
    Supported Component MetricsDown to 0402, up to 20mm tall, up to 25 grams
    Placement Speed500-1000+ CPH (depends on component size and machine configuration)
    Machine Dimensions30in wide, 28in deep, and 12.6in tall
    (765mm x 710mm x 320mm)
    Power Consumption144W
    Control Software
    OpenPnP
    Device Firmware Marlin

    Product Details

    The LumenPnP requires configuration and setup using OpenPnP. We provide default configuration files and setup instructions, which can be found on our docs page. Please read our docs at docs.opulo.io and become familiar with the setup process. You can expect to spend anywhere from 8-15 hours during initial setup.

    Final machine design is subject to change before shipping. We are constantly updating and improving the design.

    Proudly assembled in the USA.

    Items purchased in the same order will ship at the same time, with the longest lead time of all the included items.

    If you have any questions before ordering, you can reach us through our Support Form, or request an invoice at sales@opulo.io.

    Download Brochure
